5 Reasons Why Samsung Fridge Not Cooling + Service manual

DISCLOSURE: This post may contain affiliate links, meaning when you click the links and make a purchase, we receive a commission at no additional cost to you

If you searching for the answer “Why my Samsung fridge is not cooling?”. Well, there are several reasons for that.

Samsung fridges “notorious” to have problems starts with Twin Cooling Plus technology, evaporator fan failure and ended up compressor failure

The reason why Samsung fridge is not cooling PROPERLY, in most cases caused by ice build-up that restricting air circulation. Ice build-up on the other hand caused a defective defrost heater, clogged drain line, failed defrost thermostat, bad evaporator fan, or defective defrost temperature sensor.

The reason why Samsung refrigerator is not cooling AT ALL in both freezer and fridge compartments is caused by a failed compressor inverter board, a bad compressor, a refrigerant leak in the sealed system, or a restricted drier filter.

If Samsung Fridge Not Cooling Properly, But Freezer Works.

The evaporator coils are frosted over:

When the evaporator coils get covered with frost, the evaporator fan unable to circulate cold air within the fridge due to blockage, and the fridge will not be cooling. This problem related to failed defrost cycle.

Sometimes, the problem can be solved by replacing the defrost temperature sensor (but it does not always fix the problem)

There are actually 2 identical temperature sensors. But you will need one with the white connector on the right side of the fridge.

If you see ice build-up on the back wall where is said “Twin Cooling” of your fridge or maybe you hear noise coming from the fridge, but when you open the door noise just gone? That’s means you have an issue with condensation which accumulates behind that panel and eventually becoming ice.

In case if there is an issue with proper drainage (drain is fully or partially clogged) during Defrost Cycle, you will have standing water at the bottom.

Standing water evaporates and condensates at the top section of the Twin Cooling Panel, causing the evaporator fan to ice up.

This problem also refers to, when you have water in or under the crisper drawers and your Samsung fridge starts to leak because the drain line is clogged and water is overflowing.

In this case, you need this Drain Repair Kit above and here is the video below what you need to do.

Evaporator fan frosted over:

Some people may complain about “Why Samsung fridge fan not working?” The main purpose of the fan is to circulate the cold air in the fridge.

But when your Samsung fridge not cooling, one of the reasons for that is that your evaporator fan blocked by ice.

You need to check your evaporator fan to make sure it’s working or not.

Samsung evaporator fan blocked by ice

If you have a french-door refrigerator, close the left door and put an ordinary magnet on the right side of the fridge to simulate the right door closing.

Samsung reed switch location

After a couple of seconds, the evaporator fan should start spinning.

If you don’t hear the fan running, most likely fan blades blocked by ice, or the fan is burnt.

Samsung fridge evaporator fan  not spinning

Defective defrost heater :

Under normal circumstances the defrost heater assembly (you can get one here) is responsible for defrosting any frost that been formed on the evaporator coils in the refrigerator, whose function is to allow cold air to freely flow thereby leading to the freezer cooling.

However, when the defrost heater assembly is not functioning accordingly, excess frost will build upon the evaporator coils, as a result, the airflow will be restricted, which will result in the fridge not cooling.

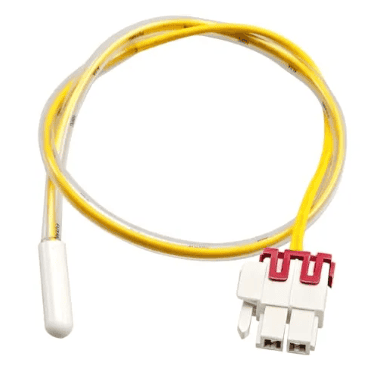

Defective thermistor or temperature sensor:

When working properly this component keeps in check the temperature of the refrigerator and transmits the information on the temperature reading to the control board so that appropriate power can be supplied to the evaporator fan as well as the compressor for effective cooling in return.

But when the thermistor is defective both the compressor and the evaporator fan may not work properly.

Defrost thermostat failure:

This component allows the power to flow to the heater.

When its failed, power will not flow and heater will not able to heats up and melt ice or frost which may build up on the evaporator coils.

How To Activate Forced defrost Mode?

Apart from replacing any components found defective, the following actions can be taken to fix the inability of the fridge to cool.

In most cases, the inability of the Samsung fridge to cool is as a result of having excess ice frosting over the evaporating coils as well as the fan.

Therefore, one can easily initiate a FORCED DEFROST mode by pressing FREEZER and LIGHTING or ENERGY SAVER and FRIDGE buttons at the same time for 8 seconds.

Once you will hear one chime sound, press the LIGHTING button several times after that, until you will see Fd on the display.

This action activates the defrost element and melts the ice.

To exit the Forced Defrost mode you can simply unplug the power from the wall or wait 20 minutes till forced defrosting will be done.

In a nutshell, Samsung fridge inability to cool is one of the most inconveniencing challenges faced with the brand.

Among the notable causes include the malfunctioning of various components that work together as a team to bring about cooling in a freezer, such as a compressor, defrost control board and the evaporator coils among others.

Rather, this is something one can be fixed by simply making diagnostic tests on the components suspected to be defective, such as the ones mentioned above and have them replaced or even repaired where possible.

Therefore, don’t let the Samsung fridge not cooling give you a headache when there is something you can do about it to bring back that peaceful mind and the beauty of the fridge.

If Samsung Freezer And Fridge Not Cooling At All

Compressor Inverter Board Failed

This part of the fridge is responsible for sending power to the compressor when its needed. Compressor inverter board can regulate revolutions of the compressor and thus provide more or less cold, depends on the situation.

If this board failed, power will not flow to the compressor and there will be no cold at all in the freezer or the fridge.

In order to troubleshoot this problem, you have to be familiar with using of multimeter and checking power on the input and output of the inverter board.

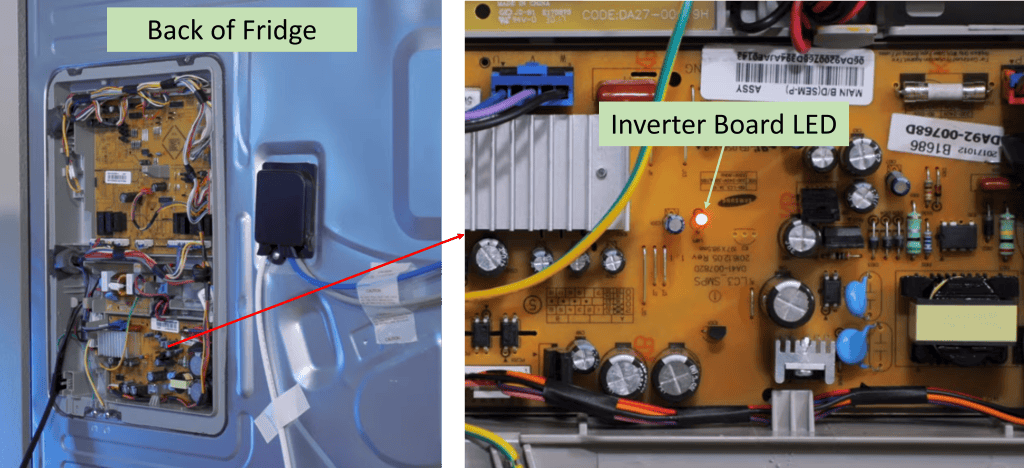

Samsung Refrigerator Inverter Board
Buy Now
We earn a commission if you click this link and make a purchase at no additional cost to you.

Compressor Malfunctioned

If the compressor is getting power and maybe even humming, but not producing cold, this is one of the reasons when the compressor is lost efficiency or failed either mechanically or electrically.

Refrigerant Leak In The Sealed System

This issue is common not only for Samsung refrigerators but can be applied to any other refrigerators on the market.

A sealed system is where the refrigerant circulating from the compressor to the evaporator coils and back. This system contains lots of copper or aluminum tubes.

When one of the tubes has developed a tiny hole, it will create a leak and the refrigerant in the system will escape and evaporates eventually.

Restricted Drier Filter

This problem is not new to the Samsung refrigerator. From my experience as a Appliance repair technician, I have seen this many times.

The drier filter serves to filter moisture, dirt from the compressor. When its clogged by any of these particles, it will restrict refrigerant flow in the system and thus compressor will not be able to push or pump refrigerant.

Samsung Refrigerator Service Troubleshooting Manual PDF

Frequently Asked Questions (FAQ)

Why is My Brand New Samsung Fridge Not Cooling?

One of the reasons is that your new fridge still in DEMO MODE. If you see on the display that says o FF or oF oF, that means your fridge still in the DEMO MODE.

In order to deactivate DEMO MODE, press and hold FREEZER and ALARM buttons until you hear a chime. If this combination of buttons will not work, try to press and hold FREEZER, ALARM, and FRIDGE buttons until you hear a chime.

If everything above is checked OK, that means you didn’t give the fridge enough time to cool.

If you have a new Samsung Family Hub Fridge and it still not cooling, you might need to activate Cooling Mode in the fridge settings.

How Long Does It Take For A New Samsung Fridge To Get Cold?

To get cold to a temperature of 0F for the freezer and 36F for the fridge compartments, a brand new Samsung Fridge requires at least 2-4 hours before you can put food in it.

Why Is my Samsung Fridge Not Cooling and Making Noise?

Most likely it caused by the ice build-up blocking or touching the evaporator fan blades, that’s why fan is making noise and may slow down air circulation. But If you open the fridge section door and this noise goes away, it is 100% related to the ice accumulation behind the TWIN COOLING panel.

Why Is My Samsung Fridge Not Cooling After Power Outage?

There are several problems that can happen with your fridge when you had a power outage. One of them is the problem related to the main control board or inverter board which supplies power to the compressor.

You can try to reset power by unplugging the fridge for 5 minutes. But if your fridge will not start cooling in 10 minutes after that, you can start troubleshooting this issue further by yourself or rather call a service company to do this job for you.

Reader Comments (328)

  1. My RF25HMEDBSR model is not cooling the refrigerator. It displays the temperature to be 38degreez, but is actually about 58 degrees. The coils are not freezing over. I replaced the temperature sensor, but no help. Any suggestions?

    Reply
  2. my samsung RF4287HARS/XAA refrigerator is cooling but the freezer is not. 38 deg. F fridge/ 38 deg. F freezer. Ice making is slow to non existent. Inverter PCB board solid red LED

    Reply
  3. I have a Samsung refrigerator RH2SH5611WW/AA001, The freezer side works fine but the refrigerator side stopped cooling. It’s been looked at by a tech and I was told it was the fan. I had him replace the fan again. It was supposed to fix the problem. Unfortunately the refrigerator stopped cooling again today and the display started blinking the number 34. I cannot do anything to stop the blinking number and the refrigerator just keeps getting warmer.
    In January 2018 they replaced the Evaporator fan motor and in April they replaced the main PCB. I’m one step closer to just getting a new refrigerator I will not get another Samsung.

    Reply
  4. Hi,
    My Samsung fridge model rt72k6360sp is not cooling properly while freezer is working fine. One year ago same problem was encountered and technican suggested replacement of some sensor/sensors but after his visit fridge start working as normal and I have not asked for replacement of any sensor. Again same problem is encountered. Please suggest.

    Reply
    • There is no proper and permanent solution, even from Samsung. You can keep replacing parts, hoping that it will fix the problem. But there is a big chance that the problem come back again. At least I don’t know a universal solution for your problem

      Reply
  5. Hello everyone, I have a Samsung American Fridge Freezer RSA1UTMG. For the past two days now the fridge and the freezer section haven’t been cooling at all. There are no funny sounds/clicks, the compressor is working, the fan is working, the coils at the back are clean, no ice build up inside the back panel of the freezer! Any ideas what the problem might be? Thanks.

    Reply
    • Sounds like a major issue with your fridge.
      1. Sealed system has a leak
      2. Sealed system drier is clogged, not allowing refrigerant to flow and thus not cooling

      Reply
    • My Fridge is off completely. When I disconnect from outlet and drain the power it starts up for about a minute and the cooling fan turns on and off intermittently and then turns back off. In the past that trick worked but now it’s just turning off – no lights, no nothing.

      Reply
  6. 2nd time in 3 years that my Samsung RF30HDEDTSR has frozen the refrigerator evaporator coils and stopped cooling the fridge (Freezer is fine). I forgot how to get the iced over back panel off. It feels like the styrofoam insulation is stuck to the ice. I put it in FD mode

    Reply
  7. I have a Samsung rf32fmqdbsr. The refrigerator section is not cooling but the freezer is fine. I checked the evaporator coils, the evaporator fan, the defrost heating and they are all fine. I also tested the amp on the compressor and it is fine. The problem is the compressor will run until the fridge gets to 15 C and at that point it shuts down. Every time the the fridges gets to that same temperature the compressor shuts down. It will start up again if the fridge temperature rises, but will shut down again if it gets to 15 C. The electronic temperature is set to 4 C so I am not sure why it is always shutting down.

    Reply
    • Fridge temperature sensor not calibrated or defective. You may insulate the sensor by covering with a heat shrink sleeve so that it does not get cold air directly, thus delaying the compressor cutting off and increasing cooling time to reach desired temperature. If this doesn’t work replace fridge temperature sensor.
      Also check evaporator fan voltage (generally 12 V DC) and it’s rpm. If found low rpm replace fan.
      Hope this solves you fridge cooling issue

      Reply
    • Hi Ryan, I have the exact same fridge and the same problem! It started maybe about 2 weeks ago but I just noticed it about 5 days ago. I had a dishonest repairman tell me that the inverter board was fried and replaced it saying it would work, it didn’t, after 485 dollars… I was very disheartened by that experience so I didn’t want anyone else to look at is and instead just bought a new fridge. It hasn’t been delivered so I’m still debating if I should try it one more time. In any case, has your problem been fixed? Thank you so much for your time and any tips/updates you have
